The JCY series which JinChengYu developed functions as a non-powered manual material lift designed for specialized operations between two designated work areas. The product features a design that allows single users to move it because its weight is light yet its construction enables it to handle loads up to 450 kilograms which equals 1000 pounds. The essential tool which HVAC contractors and electricians and warehouse facility managers need for their work enables them to lift ducts and AC units and steel beams. The company provides quick international delivery services which start from Qingdao Port.

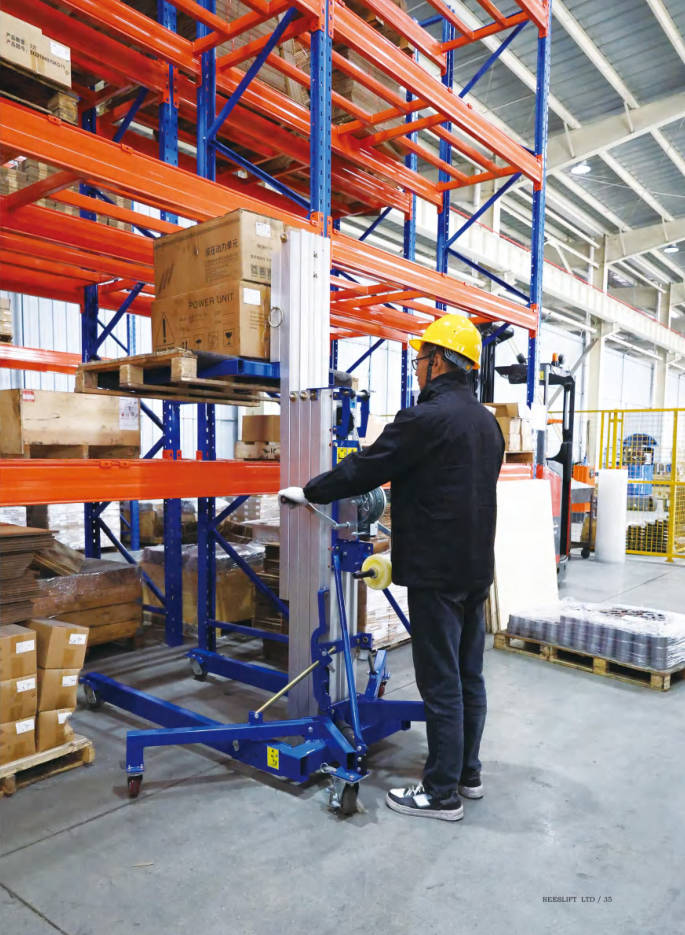

The JCY Series Material Lift (which people refer to as Duct Jack and Superlift) serves as the most effective equipment for performing vertical material handling tasks that require no electrical power or hydraulic systems. JinChengYu supplies this portable lifter to construction and industrial clients worldwide. The product features a modular design which enables users to operate it through standard doorways and to transfer it into a pickup truck within two seconds. The JCY functions as a dependable and secure platform for both overhead pipe installation and heavy stage equipment lifting tasks.
The device operates without any power needs because it uses a high-performance manual winch system which includes an automatic braking mechanism to ensure safe operation in all environments without the need for charging. The telescoping mast consists of aviation-grade aluminum which provides both lightweight vehicle construction and maximum structural strength to achieve optimal performance. The unit features a design that enables users to transport it through single doors by tilting the device back on its built-in wheels. The system supports multiple attachments which include standard forks and pipe cradles and load platforms for handling various types of cargo. The system uses multiple safety mechanisms to maintain mast security during maximum load conditions.
| JCY-SML3.3 | JCY-SML4.4 | JCY-SML5.5 | JCY-AML3 | JCY-AML4.5 | JCY-AML6 | JCY-AML7.5 | |
|---|---|---|---|---|---|---|---|
| Max. Working Height (Forks Up) | 3.8m | 4.9m | 6m | 3.49m | 4.98m | 6.46m | 7.94m |
| Max. Working Height (Forks Down) | 3.3m | 4.4m | 5.5m | 2.97m | 4.46m | 5.94m | 7.42m |
| Max. Load Capacity (36cm Center) | 318kg | 295kg | 272kg | 454kg | 363kg | 363kg | 295kg |
| Stowed Height | 1.6m | 1.6m | 1.6m | 1.99m | 1.99m | 1.99m | 1.99m |
| Machine Weight | 125kg | 138kg | 156kg | 148kg | 176kg | 205kg | 231kg |
| Power Source | Manual Winch | Manual Winch | Manual Winch | Manual Winch | Manual Winch | Manual Winch | Manual Winch |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
The process of HVAC installation includes the task of lifting and positioning air ducts together with heavy air conditioning equipment. The electrical work requires the installation of overhead lighting together with cable trays and transformers. The exhibition and stage work involves the installation of truss systems together with audio-visual equipment. The warehouse stocking process requires workers to lift heavy pallets and parts to mezzanine levels.
