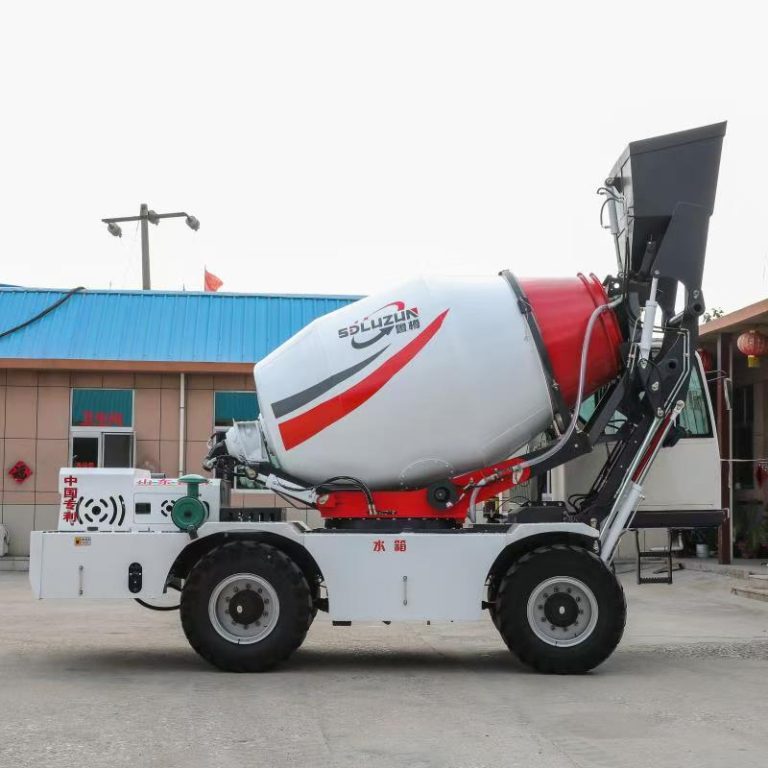

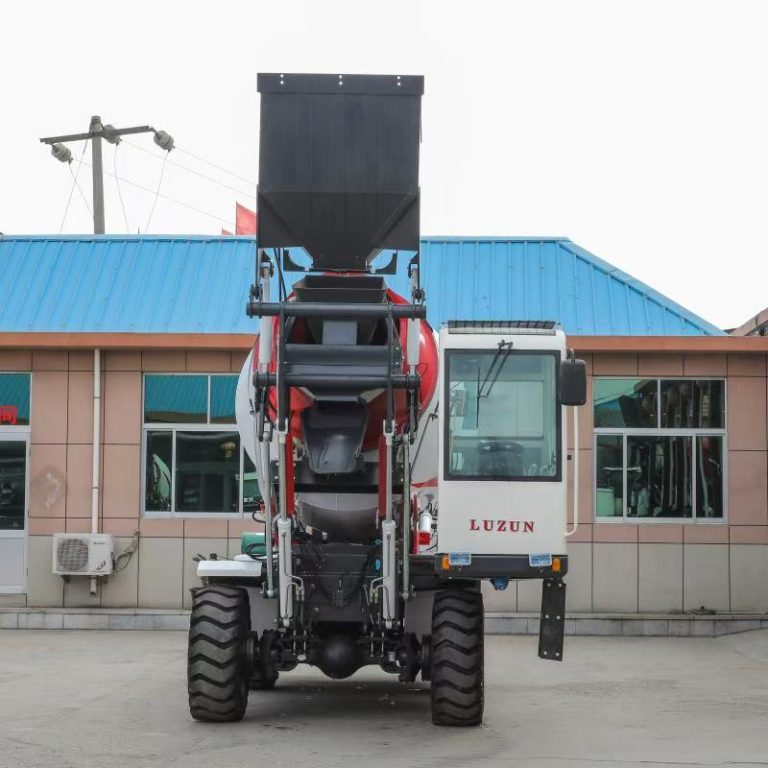

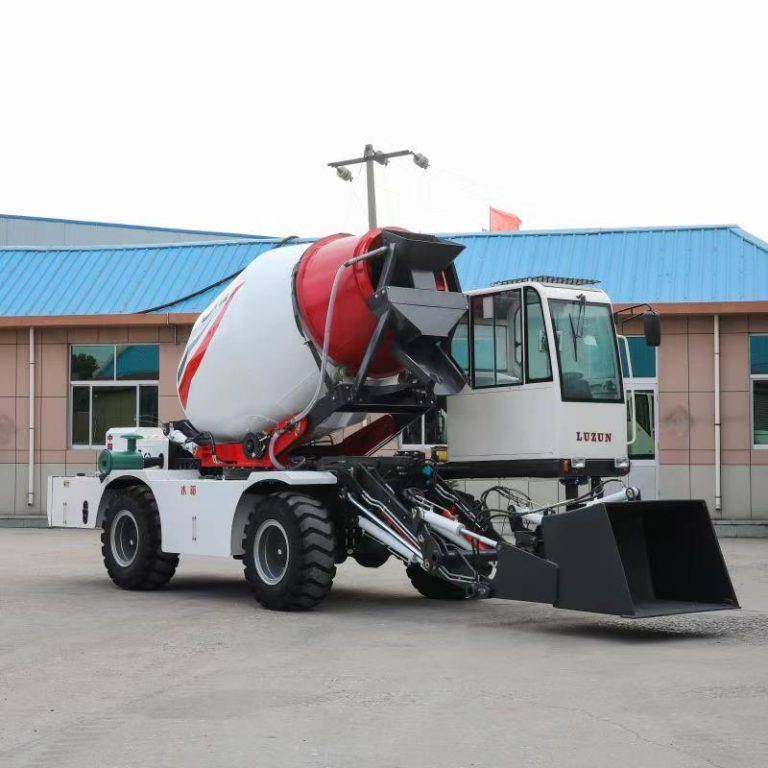

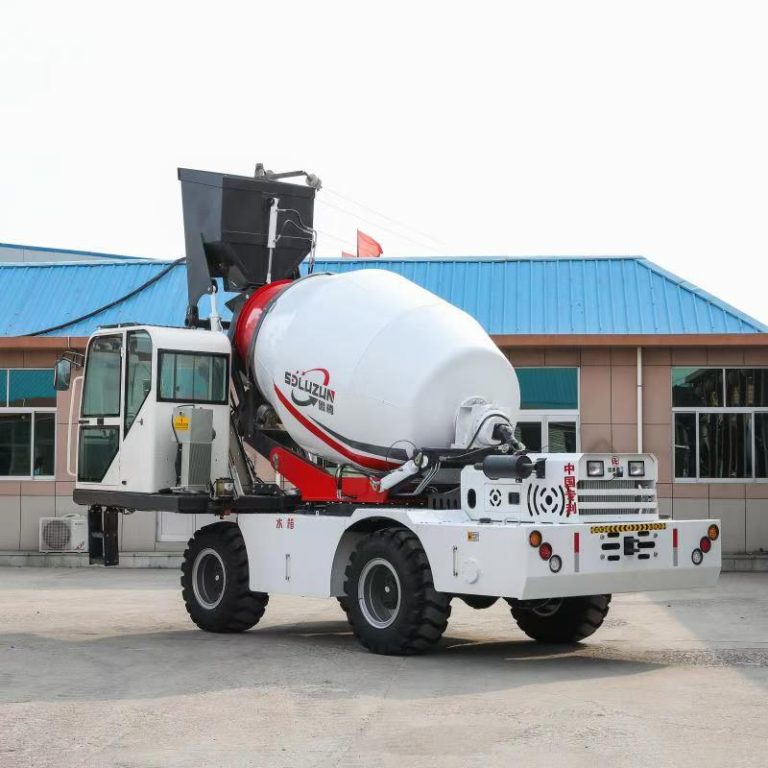

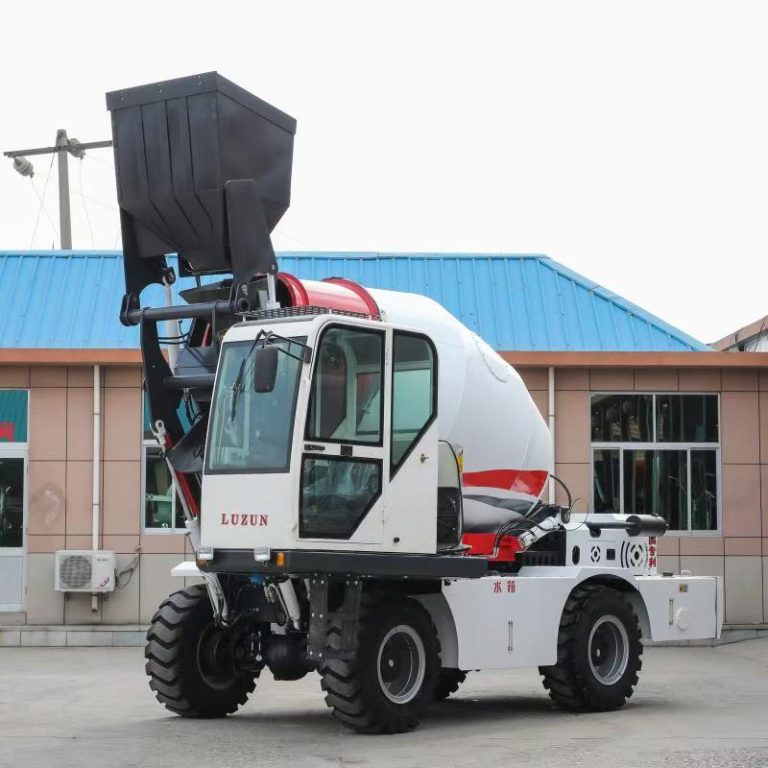

The JBC (6500) 4.0 is a sturdy and heavy-duty 4×4 concrete mixer truck designed for difficult construction sites. With its full-frame chassis, it guarantees outstanding durability and stability even in rough off-road conditions.
It has a large mixing capacity of 4.0m³ making it perfect for extensive concrete production and uninterrupted use in big infrastructure projects. The strong performance and efficient fuel consumption are provided by the trustworthy 126hp engine.
Moreover, it is equipped with front-wheel steering that enhances maneuverability and hydraulic weighing scales that guarantee accurate batching and uniform mix quality for every pour.
JBC (6500) 4.0 Self Propelled Mixer: Heavy-Duty Full Frame Durability, Maximum Output, and Industrial Reliability
The JBC (6500) 4.0 is a self-propelled mixer that is very powerful and reliable. It is not only the biggest model available but also the strongest one. It has a full-frame chassis which provides the whole 18,400 kg weight with an impressive load-bearing stability due to the combination of front-wheel steering and the full-frame chassis.
The machine has a more powerful YD4J22G engine which develops 91 kW (126 hp) and 440 Nm of torque at 4400 rpm up from 84 kW (113 hp) and 350 Nm. Its huge 6100-liter drum can accommodate a total of 4.0 cubic meters of concrete in one cycle. By 10T hydraulic wheel drive axle and other modern equipment such as hydraulic electronic scales, it is prepared for high-volume industrial applications.
| Diesel engines | Stirring and unloading |
| Mode:YD4J22G
Maximum power: 91 kW (126 hp) Maximum torque:440 Nm @2800 rev / min |
The double cone Drum has a double spiral agitating screw and a convex bottom.
Drum geometry 6100 Liters Drum rotation speed 16 Rev / min. Concrete production 4.0Cubic Meters / Drum |
| Electrical System | Steering |
| Generator:28V–1500Wa (53.5A) Battery:2×12V–100AH (454A)
Road lighting system |
Front wheel steering |
| 4*4four-wheel drive | Water supply system |
| Full-time four-drive speed is 0-36 km / h
Torque converter gearbox, open hydraulic gear pump. |
“Self-suction” 24V large capacity pump with quick suction function.
Quantitative water supply controller, the mixing is more uniform and more in line with the standard |
| Axles and tires | Operating Cab |
| Aggravated special bridge,the planetary reduction gear,the flanged gearbox
Rear axle, swing(± 28°), and swinging frame on the bridge.Whole car is full frame,rear wheel double spring shock plate Tires… 16-70-20PR, Maximum load:5150kg,450kPa |
The enclosed operating room is available with
a heated/cold system and a tilted front window. Humanize seat with flexible suspension and height adjustment. |
| Brake | Maintenance amount |
| The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. | Fuel tank. 135 liters
Total hydraulic system capacity 240 liters Engine oil. 20 liters |
| Equipment hydraulic system | Weight |
| Aluminum heat exchanger is used for cooling hydraulic oil.
Open oil inlet, hydraulic oil filter can be replaced externally |
Operating weight: 8800 kg
Maximum total weight: 18400 kg Maximum load 9600 kg |
