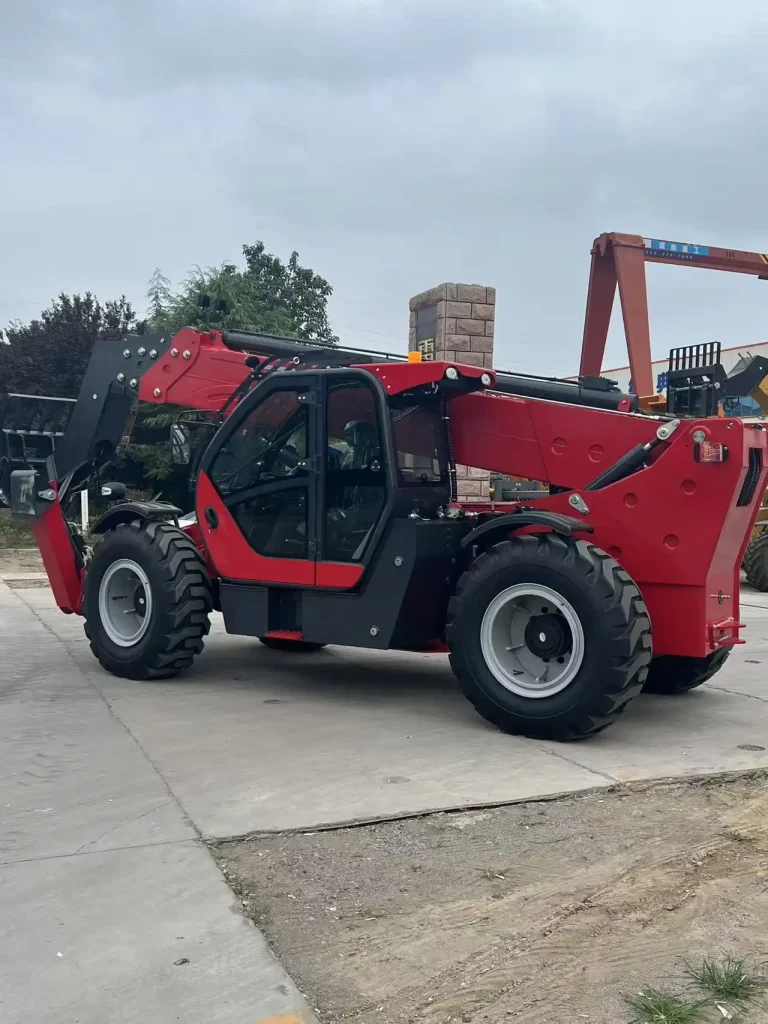

T1850 Telescopic Handler (Heavy Duty)

T1850 Telescopic Handler: Ultimate 17.5m Reach, Cummins Power, and Maximum Heavy-Lifting Reliability

Product Overview

Introducing the T1850 Telescopic Handler, the heavy-duty model designed for the toughest heights and loads. With a staggering 17.55-meter lifting height and a 5000 kg rated load, it is the perfect solution for infrastructure and industrial projects with the use of cranes. More than that, it’s equipped with a very powerful Cummins 91kW (122hp) engine and it is coupled with the better advanced frame leveling technology (+/-9°) to maintain stability on uneven grounds, giving one hundred percent safety in high-altitude operations.

Key Features

• Maximum Reach & Stability

  It has a maximum forward reach of 13.08 meters. Hydraulic outriggers and a frame leveling system (+/- 9°) are installed on the chassis allowing the machine to shift its center of gravity on hillocks for secure hoisting.

• Cummins Power & Control

  A Cummins (China 2/Euro 3/EPA 4 options) engine is the heart of the machine providing high torque and reliability. The electronic control gearbox gives 4 forward and 4 reverse gears for accurate speed mgmt. (up to 30 km/h.)

• Advanced Hydraulics

  Closed piston pump system with an overload protection system integrated into the centralized handle is the superior hydraulic system of the machine. The hydraulic wet braking system (oil-immersed multi-disc) provides outstanding and dependable stopping power.

• Heavy-Duty Mobility

  It is equipped with 17.5-25 big tires and has a minimum ground clearance of 420 mm. It also offers Front, Four-wheel, and Crab steering modes for the easy crossing of complicated job sites, just as the smaller models do.

Technical Specifications
