Proudly supplied by JinChengYu, is a small, environmentally friendly, and electric tow tractor that has the design of being able to operate efficiently even in cramped areas. Although it takes up very little space, it has a power rating for towing of 6000kg. JinChengYu provides full export support for this model

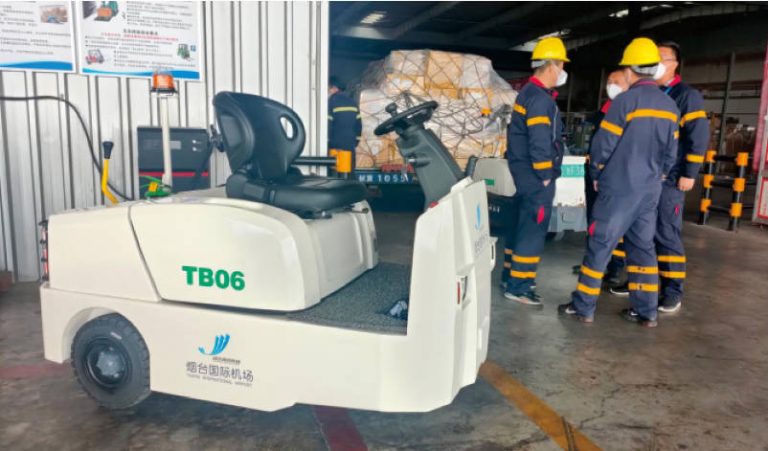

Driving through narrow bends needs utmost care, and the TB06 Electric Tow Tractor is the one with its 1770mm turning radius. JinChengYu advises this model to those of their clients who demand eco-friendly transport solutions. When you collaborate with us, you not only acquire such an efficient small tractor but also, thanks to our logistics experts, an easy and smooth integration into your fleet.
Compact Agility: The sleek design and small turning radius allow for exceptional maneuverability in confined spaces where larger tractors cannot go.
Smart Braking: Uses an electromagnetic braking method for the parking brake—lightweight, reliable, and practically maintenance-free.
Inching Control: A rear-mounted inching switch allows operators to make micro-adjustments when hitching trailers, significantly speeding up the coupling process.
Driver Comfort: The suspension system utilizes leaf springs and hydraulic shock absorbers (front and rear), ensuring a comfortable ride even on uneven surfaces.
| Feature | Specification |
|---|---|
| Model | TB06 |
| Rated Towing Capacity | 6000 kg |
| Max Drawbar Pull | 6000 N |
| Turning Radius | 1770 mm |
| Power Source | 48V / 275Ah Lithium Iron Phosphate Battery |
| Travel Speed (Unloaded) | 12 km/h |
| Dimensions (L x W x H) | 1963 x 990 x 1376 mm |
