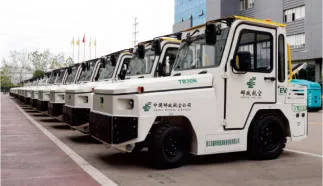

TCF TB30N Electric Baggage Tractor

JinChengYu, the one who supports you with the material handling, introduces the TCF TB30N, which is an electric tractor of 30 tons with the voltageoption of low or high. Its independent suspension guarantees a more customized and thus suitable for many applications ride. We manage the entire export process, and that ensures the safe delivery of this high-tech equipment to your site.

Chat Now

PRODUCT DETAILS

Product Overview

The TB30N Electric Baggage Tractor is the connecting point between the conventional baggage tugs and the heavy cargo movers. JinChengYu has understood the diverse power requirement and therefore sells this model to multiple markets. Our Qingdao team offers the technical support and the logistical know-how necessary to bring your airport the exact specification you want, no matter the case you prefer – the 76.8V or the 309V version.

Key Features

Voltage Flexibility: Offered in a regular 76.8V system for seamless installation or a super 309.12V high-voltage system for quicker charging and efficiency.
Out of this World Suspension: The front axle is using a swing-arm type independent suspension with spring and hydraulic shock absorbers, lowering the vibration remarkably in comparison to solid axle tractors.
CATL Trust: Utilising the best in class CATL Lithium Iron Phosphate batteries with long cycle life, thus the fire extinguishing device is also included for your maximum safety.
Rain or Shine: The cooling system for the drive is water-based which means no overheating and thus, no stopping of operation even in the hottest summer days.

Technical Specifications

Feature	Specification
Model	TB30N
Rated Towing Capacity	30,000 kg
Max Drawbar Pull	25 kN
Voltage System	Option A: 76.8V / 840Ah (Low Voltage) Option B: 309.12V / 228Ah (High Voltage)
Suspension	Front: Independent Swing Arm / Rear: Leaf Spring
Travel Speed	25 km/h (Unloaded)
Turning Radius	3000 mm
Dimensions (L x W x H)	3420 x 1450 x 2000 mm
